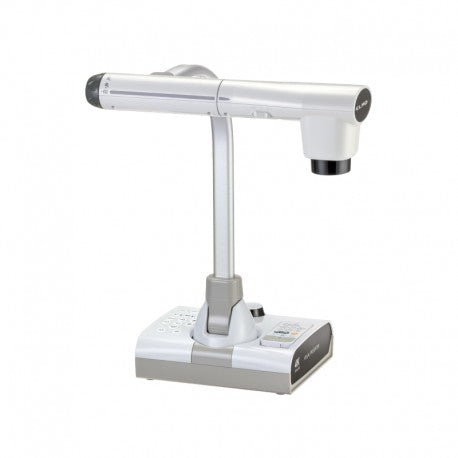

ELMO L-12G Visualizer

ELMO L-12G Visualizer

En stock En rupture Entre 2 et 3 mois de stock


  • Résolution 4K UHD (3840 x 2160 pixels)
  • Capteur CMOS 8.3 mégapixels
  • Zoom optique x12, numérique x16
  • Connexion USB 2.0 (type A & C)
  • Logiciels ELMO Interactive Toolbox / ELMO Play Apps
  • Lampe et microphone intégrés
  • Surface de capture : 470 x 260 mm (A3)
  • Help and warranty

    Downloadable documentss

    The most complete Android viewer in the ELMO range

    The ELMO L-12G viewer is a stable and flexible tool for all presentations. This is the most complete viewer in terms of connections and innovations .

    Of all the viewers, the L-12G mobile viewer stands out with many strong points:

    • 4K UHD resolution , as well as a zoom of up to x192
    • An arm that pivots up to 300° to observe in all directions and corners
    • Save captured photos and videos to SD card or USB key with a single click
    • Controllable manually or remotely from its included remote control
    • An Android tool equipped with wireless features (integrated WiFi, Miracast)
    • Wide variety of connections ( VGA IN and OUT, HDMI IN and OUT, USB, etc. ) and Pass-Through function

    Designed to make lessons exciting, the L-12G viewer will find its place perfectly in a classroom thanks to its flexibility, solidity and innovative features .

    Great optical performance coupled with powerful connectivity: the most complete viewer on the market

    Project your documents to your audience, in class or in a meeting room, with the assurance of perfect reproduction thanks to:

    • a frequency of 60 frames per second (in 4K via the 8.3 Mpx sensor)
    • 300° image rotation
    • a shooting area of ​​470 mm x 260 mm (A3 format)
    • 12x optical and 16x digital zoom allowing magnification up to 192x

    Every detail, even the smallest, is visible with the ELMO L-12G viewer in a perfectly sharp image.

    A viewer with integrated Android

    The L-12G viewer runs on Android. Connected to a PC, an interactive screen (via USB and HDMI) or even a TBI (via HDMI or VGA), it provides you with some pre-installed applications:

    • an annotation application which allows you to annotate the image broadcast on the screen or PC
    • a whiteboard
    • a gallery to view captured or filmed images
    • a web browser
    • an app store: ELMO play
    • etc.

    A viewer that can be handled in a completely intuitive way

    Directly on the device or via the supplied remote control, you can easily control your ELMO L-12G viewer.

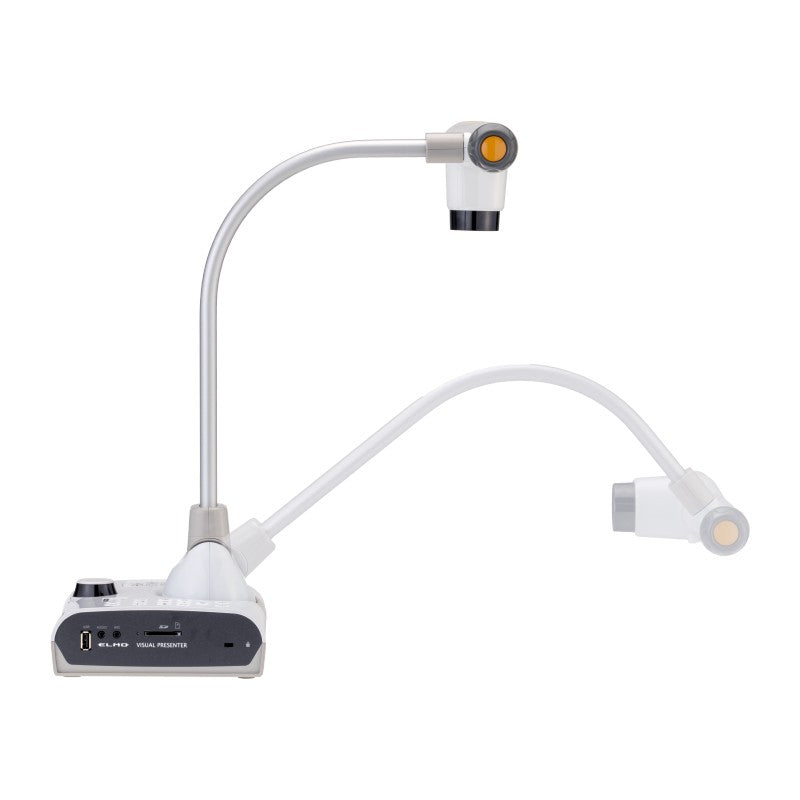

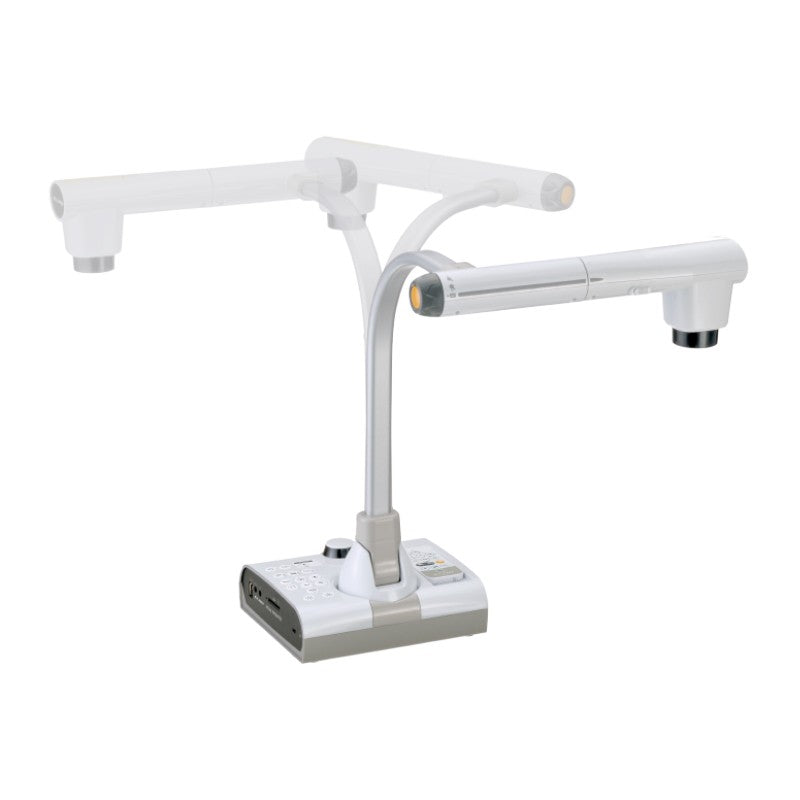

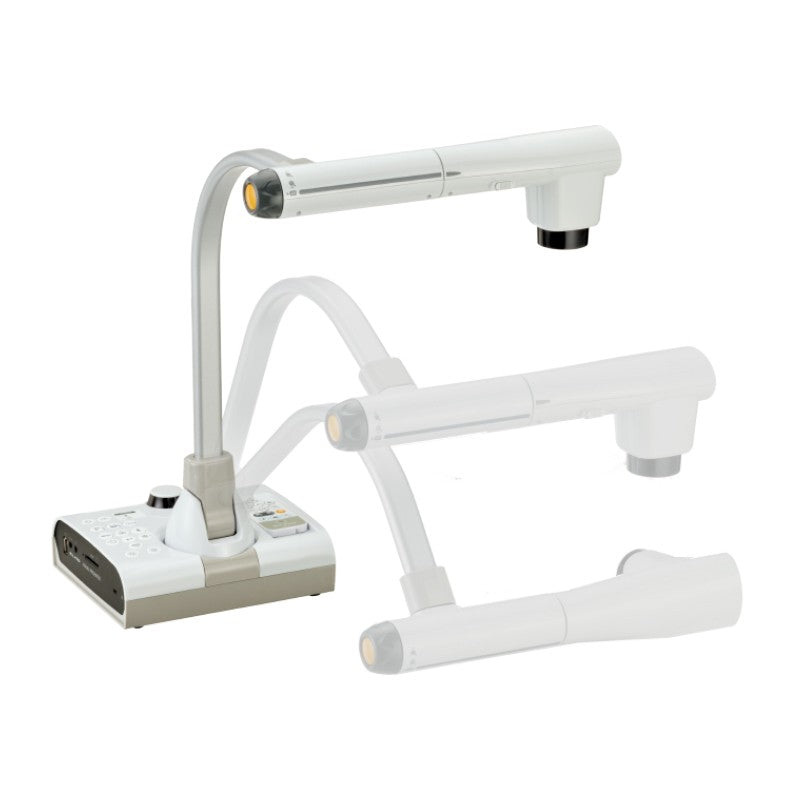

    Stable and flexible, the head and arm of the visualizer can be rotated 300° . The sturdy viewer arm stays in position. It is easily usable by left-handed and right-handed users.

    Ideal for lessons and dynamic presentations: the remote control allows you to manage the many functions of the viewer. The remote control range is 7 meters. Start recordings, zoom, re-center the image, access storage devices from your single remote control.

    The ELMO L-12G viewer can be used with or without a PC, at your convenience.

    A perfect visualization tool for classrooms

    The ELMO L-12G viewer combines all the features necessary to visualize an object as accurately and precisely as possible:

    • Its 8.3Mpx camera provides 4K resolution images (up to 9.3Mpx in 4:3, or 3520 x 2640p) and smooth video thanks to a frame rate of 60 frames per second.
    • Turn on the LED integrated into its head to provide additional brightness.
    • Zoom (12x optical zoom & 16x digital zoom) and autofocus using the wheel located on the viewer head.

    Record your photos and videos live with a single click

    On SD card or USB key, save your presentations in jpg or mpeg4 formats.

    As the ELMO L-12G viewer has an integrated microphone , you can direct the lens towards your audience and use the product as a webcam: you will be able to benefit from the high resolution of the product, but above all orient it as you wish for a interactive videoconference session.

    Numerous connections for an ultra-complete viewer

    Thanks to its numerous entrances and exits, discover new uses, such as "Pass-through". This feature allows you to use the viewer as an HDMI switch: connect a computer and an interactive display to the ELMO L-12G viewer to display PC content on the interactive display at the press of a button .

    Connect your viewer to a giant interactive screen

    Miracast technology for mirroring the viewer to a screen
    With Miracast technology installed on the integrated tablet, connect the L-12G viewer wirelessly to a Miracast compatible screen to share your images with as many people as possible.

    Connect your viewer to a giant touch screen while keeping touch
    By connecting your viewer to the screen with an HDMI cable and a USB cable, you will transfer the image captured by the L-12G viewer to the screen while maintaining touch. From the giant interactive screen, you can annotate the image filmed by the viewer just like on its integrated tablet.

    Multiple functions in one viewer

    In addition to its numerous connections, the ELMO L-12G viewer remains a powerful optical tool with innovative options, such as:

    • Split screen : to show recorded images and live images simultaneously.
    • Highlight : to highlight a specific area or a specific subject in your image.

    The non-exhaustive list of its functions:

    • Mask function
    • Scrolling
    • Color filter
    • Microscope mode
    • Positive/negative conversion
    • Color / B&W Selection
    • etc.

    Technical Specifications


    • USB Connection : USB 2.0 (type A & C)
    • Included Software : ELMO Interactive Toolbox / ELMO Play Apps
    • Product Dimensions : Déplié : 349 x 377 x 435 mm ; Plié : 195 x 294 x 478 mm
    • Net Weight without Packaging : 3 kg
    • Capture Surface : 470 x 260 mm (format A3)
    • Energy Consumption : 21.6W

    Technical Specifications

    • Camera Resolution : 4K (3840 x 2160)
    • Focus : Autofocus ou focus manuel
    • Optical Zoom : x12
    • Digital Zoom : x16
    • Image Frequency : 60fps en 4K
    • Image Rotation : 90°/180°/270°
    • Aperture : F3.2 (à 50mm) et F3.6 (à f 200mm)
    • Capture Zone : 470 x 260 mm (format A3)
    • WiFi : WiFi IEEE802.11 a/b/g/n, 2.4GHz/5GHz, Miracast (720p)

    Physical Characteristics

    • Sensor : CMOS de 1/2.3 pouces & 9.3 mégapixels (3520 x 2640) ou 8.3 mégapixels (3840 x 2160)
    • LED Lamps : Intégrée
    • Integrated Microphone : Oui
    • USB/SD Card Reader : oui
    • SD Card Port : oui
    • Power Supply : via adaptateur secteur fourni (5V DC)
    • Included Accessories : Adaptateur secteur, câble d'alimentation (USB), câble USB, manuel, télécommande IR (avec dragonne & piles)
