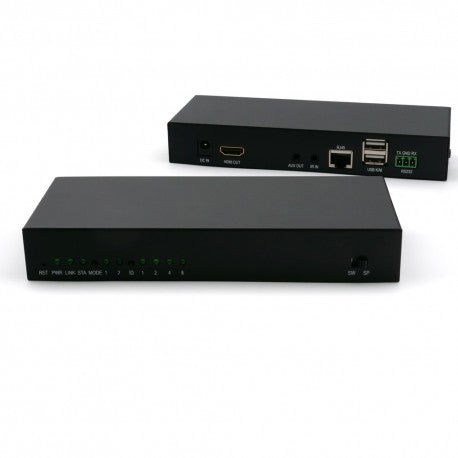

HDMI Replication Kit for Interactive Display, 1 Transmitter + 1 Receiver with 4K Resolution, Ethernet

With this HDMI replication kit, broadcast content (images, videos, files, etc.) from your PC or interactive screen to other screens.

• Simple pairing and installation.
• Immediate image transmission, without latency and high quality.
• Split mode: replicate a screen on one or more screens ¹ .
• A Switch mode: switch between the image of 2 transmitter screens on 1 receiver screen ² .
• A CMS to manage your equipment from a PC.
• Compatible with all SpeechiTouch screens.

This Ethernet replication kit is also available in a WiFi model.

¹ To broadcast on multiple screens, this mode requires multiple receivers. The receiver is available individually.

² This mode requires two transmitters.

How to connect your HDMI OUT replication kit to your screens?

Prior pairing between transmitter and receiver

Before proceeding with replication, you must first pair the transmitter with the receiver(s). The procedure is simple.

• Plug transmitter and receiver into a power outlet.
• Connect an HDMI cable between the HDMI IN port on the transmitter and the HDMI OUT port on the receiver.
• The STAB indicator on the receiver and the LiNK indicator on the transmitter will flash before turning solid.

The devices are paired.

Connecting the transmitter and receiver to your screens

• Connect the transmitter to the screen whose content you wish to transmit by connecting the HDMI OUT port on the screen to the HDMI IN port on the transmitter.
• Connect the receiver to the broadcast screen by connecting the HDMI OUT port of the receiver to the HDMI IN port of the screen. Repeat the operation on all your broadcast screens.

A CMS to manage your equipment remotely

The CMS ⁽¹⁾ of the HDMI replication kit allows you to consult a certain amount of information about your equipment and to carry out certain actions.

• View information about your transmitters and receivers, such as their firmware version, IP address, etc.
• View the display broadcast by one of your receivers.
• Rename your receivers to differentiate them from each other and identify their location.
• Tag your devices to filter their appearance and better manage them.
• Update their firmware.
• Change the receivers channel when your equipment is set to Switch mode.
• Set a wallpaper when the receiver is not in use.

⁽¹⁾ CMS: Content Management System, in other words a content management system.
