- 4K UHD resolution and an 8.51 megapixel CMOS sensor so you don't miss any detail
- a 71° wide-angle lens accompanied by a 12x optical zoom and a 16x digital zoom
- a microphone with omnidirectional pickup over a distance of 6m
- noise-canceling technology for clear, crisp reproduction of the speaker's speech
- Its dual lens allows it to both film the entire scene and follow the targeted person
- Its image recognition technology and tracking algorithm mean that this camera is self-sufficient and does not require an auxiliary camera to set up reliable, quality auto-tracking.
Intelligent recording of your remote courses and meetings
A speaker tracked smoothly
Without any human intervention during the recording, the camera is responsible for keeping the focus on the speaker throughout his speech thanks to its intelligent framing. This intelligent framing offered by the VX-001 camera, also called autotracking, is made possible by a high-speed processor coupled with an advanced tracking algorithm.
This tracking algorithm of Speechi VX-001 video conference camera detects the target, locks on it and tracks it. Its intelligent analysis (intelligent image recognition library, scene adaptive algorithm) enables stable, fast and precise tracking.
Powerful zoom and panoramic view so you don't miss anything from a distance
No detail of the captured scene will escape people (students, employees, clients, training participants, etc.) remotely viewing the course or meeting filmed by the VX-001 camera thanks to:
- with the power of its two optical (x12) and digital (x16) zooms
- to its lens offering a wide viewing angle of 71° without any distortion
- to its zoom which adapts according to the distance from the target (in the case of automatic speaker tracking) while maintaining the appropriate size and scale.
Perfect image capture combining high definition and balanced brightness
- The camera image and auto-tracking quality are not affected by room architecture.
- The VX-001 camera produces vivid images with room-appropriate brightness (even if the person being followed by the camera is under spotlights) as well as distinct layering and color reducibility.
Prepare for your video conferences by pre-configuring up to 255 camera positions
Thanks to its PTZ* functionality, take advantage of the VX-001 camera's rotation and tilt fields to adjust and record up to 255 camera positions at different points in your classroom or meeting room. With the remote control, call up the desired camera position by typing the position number to which it was registered.
*PTZ = Pan / Tilt / ZoomSimple installation
- Place your VX-001 video conferencing camera in the back of your classroom or meeting room.
- Install it freely by placing it on a flat surface or by fixing it high (wall mounting bracket provided).
Technical Specifications
Camera
- Compatible Operating Systems : Windows XP, Vista, 7, 8, Mac OS X, Linux
- Optical Zoom : x12
- Digital Zoom : x16
- Objective : f : 4.4mm - 52.8mm, F1.8 - F2.6
- Sensor : CMOS, 1/2.5"
- Integrated Micro : Oui
- Tilt Angle : 60°
- Rotation : 340°

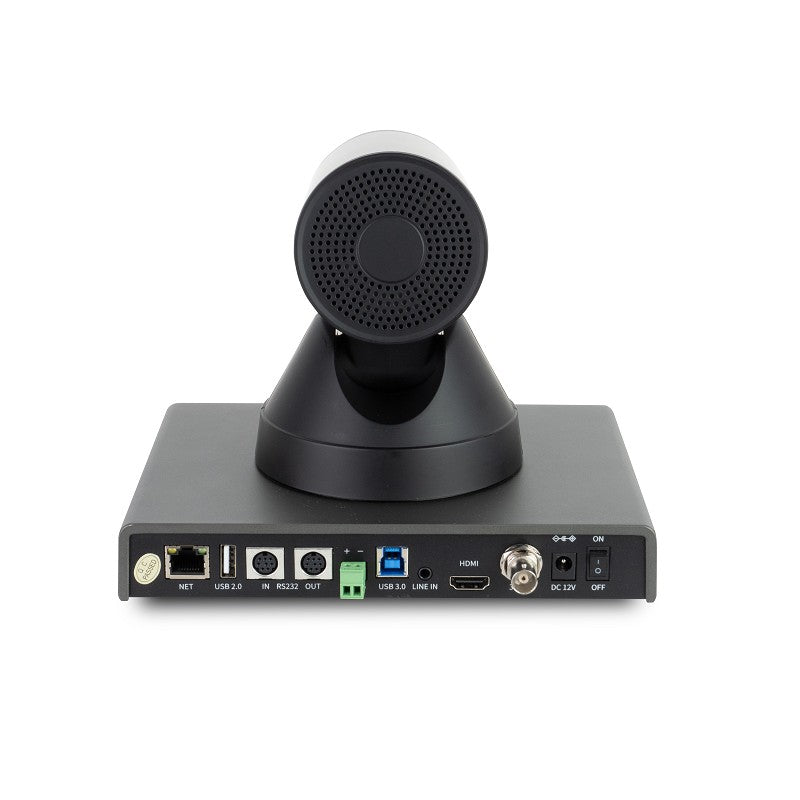

- Connectivity : HDMI x1, 3G-SDI x1, RJ45 x1, USB 3.0 Type B x1, USB 2.0 Type A x1, RS232 IN x1, RS232 OUT x1
- Dimension : 200 x 150 x 165 mm
Technology
- Automatic Participant Framing : Non
- Speaker Tracking : Oui
- EPTZ Technology : PTZ
- Integrated Speaker : Non
- White Balance : Auto, Indoor, Outdoor, One Push, Manual, Specified color temperature
- Viewing Angle : Grand angle de 71° ; H : 71° - 8.2° ; V : 42.7° - 4.5°
- Microphone Capture Quality : omnidirectionnelle, jusqu'à 6 mètres
- Type of Camera : Autotracking et PTZ
- Video Compression Formats : H.265 / H.264 / MJPEG
- Video Adjustments : Luminosité, saturation, contraste, netteté, teinte, inversion ou mise en miroir de l'image
- Frequency : 50Hz : 1fps - 25fps, 60Hz : 1fps - 30fps
- Effective Pixels : 8.51 mégapixels
Included Accessories
- Included Accessories : Adaptateur d'alimentation, télécommande, câble RS232, support de fixation mural, manuel utilisateur
